Mobile UX Design: Sliders

by Nick Babich

Nick Babich
Published in
4 min readApr 4, 2016

Sliders has been around for a long time and has become the de facto standard for selecting and filtering in apps. However, when it comes to design of this control, you need to remember that sliders make it easy for users to screw up their queries, which often leads to results that are either incorrect or of poor quality.

Why Should I Use Sliders?

Sliders are intuitive. They translate well from the physical world to touchscreens, where they look good and don’t take a lot of space. Sliders are perfect for operations such as selecting a temperature because when you select a temperature you tend to think of it in terms of “a little colder than now”, instead of numbers like “I want temp 23.”

Lexus IS haptic touch temperature slider.

Types Of Sliders

Single and Double

Single sliders are best for selecting a single value.

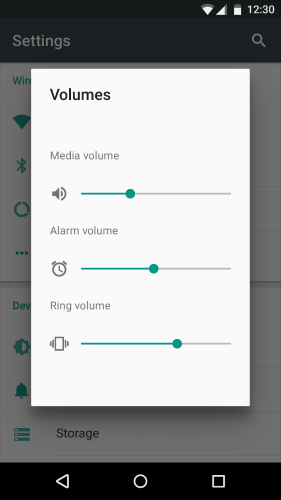

Examples of single sliders in Android Volumes

Dual sliders are good for searching within a range of values.

Continuous and Discrete

Continuous sliders are best for indeterminate values in a range, such as a price in example below.

AirBnB dual continuous slider for a price range.

Discrete sliders are good for predefined values, such as rating control.

Discrete slider for product rating (0 to 5 stars).

Both single sliders and dual sliders can be either continuous or discrete.

Is an Exact Value Necessary?

Sliders are hard to adjust precisely — both in the physical world and on digital devices (especially devices with touch screen).

Thus, sliders work best when the specific value does not matter to the user, but an approximate value is good enough. Also allowing the selection of a very specific value is often not necessary to the user.

iOS Brightness and Volume controls.

If You Still Need an Exact Value

In this case, you can use a slider with an editable numeric value. Upon pressing the thumb, the text box becomes editable for text entry and updates the value automatically with thumb movement.

Tip: If picking an exact value is important to the goal of the interface, perhaps you should choose an alternate UI element.

Show The Range and Histogram

If you use sliders for filtering you should show the actual range of values in an entire collection. This is especially good for eCommerce websites that allow filter products by price. Instead of using a range $0 and Max, you should provide an accurate range, the minimal price and maximum price for an item that users can search within.

A slider with a histogram (as shown below) can be very helpful in preventing a zero response. A high bar represents a large numbers of items, and a proportionally short bar represents a smaller number of items.

Dual continuous slider for price filtering.

Tip: There is a possibility that users don’t get the histogram. In such case, they just ignored it and continued to use the app without any issues.

Think About the Thumb and Don’t Cover The Numbers

For touch screen devices, labels should be placed above the slider. It will help you prevent situations when labels may be obscured by the users’ finger while they are interacting with the control.

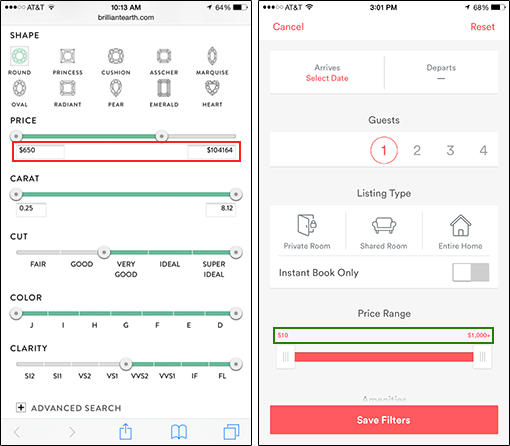

Left: The sliders on BrilliantEarth.com wrongly place the labels below the slider. Right: AirBnB.com correctly displays the slider values above the UI element. Image source: nngroup

Provide a Visual Feedback

Visual feedback is extremely important in user interface design. In real life, buttons and controls respond to our interaction, and this is how people expect things to work. Upon an input event, the system should provide instant visual confirmation.

Various slider behaviors. Source: Material Design.

Tip: Visual feedback works because it appeal to the user’s natural desire for acknowledgement.

Conclusion

Sliders are excellent UI controls, but they are not one-fits-all tool. They are good when users want something that is relative, but not very good for exact values. When designing a slider, measure interaction cost and make sure that the users can select that range (or single value) correctly from the first attempt.

Thank you!
